KW Suspension Schroefset V3 Aston Martin Volante 2012 - 2016

Designed and manufactured in Germany, The KW Variant 3 'inox-line' coilover kit is the ideal accessory for performance-oriented drivers and tuning enthusiasts who demand sportiness on their vehicles. Featuring a stainless steel damper body, the KW Variant 3 has “TVR-A” and “TVC-A” damper technology that is separately adjustable in rebound and compression to allow for an extensive damper setup. So it is easy to directly influence the steering behavior, directional stability, tire grip and handling characteristics for safe controllability on the limit.

With compression and rebound stage damping, that can be set separately and independently of each other, the damper setup can be customised to your personal driving preferences or vehicle changes such as weight, tire characteristics, or altered vehicle rigidity. This allows the compression damping force to be increased for more grip from the tyres, to improve cornering behavior and reduce squat without simultaneously altering the rebound stage damping which is optimally matched to the spring rate – a scenario which results in reduced grip and the associated loss of performance.

• Kit - KW Variant 3
• Part Number - 35233002
• Car Make - Aston Martin
• Car Model - DB9 (VH1)
• Car notes - inkl. DB9 Volante / incl. DB9 Volante
• Model Year - 10/12-
• Engine Power(KW) - 381
• Max Weight - F: -1020 R: -1200
• Lowering Front(mm) - 0-20
• Lowering Rear(mm) - 10-35

KIT NOTES

Height adjustable on the front and rear axles (threaded strut housings)
Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.

Product Features:

• Perfect for fast road use
• 2-way damping adjustment
• Wide range of ride height adjustment
• Stainless steel damper body
• Manufactured in Germany

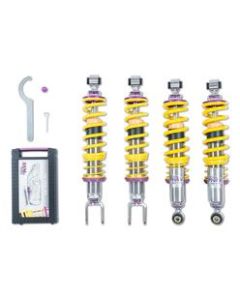

Note: The product images shown are for illustration purposes only and may not be an exact representation of the product.
